DZ47-63 1P

DZ47-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product is novel in structure, light in weight, reliable and excellent

in performance. lt has high breaking capacity, can trip quickly and its installation uses with guide, its case and items are adopted with high fire-resistant and shockproof plastics,The product, with long life, is mainly used in

AC 50Hz/60Hz single-pole 230Vor two, three,four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and off switching electric equipment and lighting circuit in normal case. The product

complies with GB10963,IEC898,BS3871.

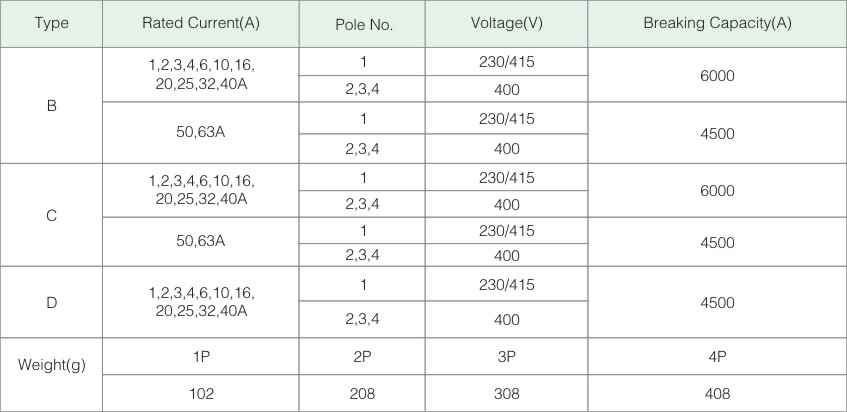

Specifications

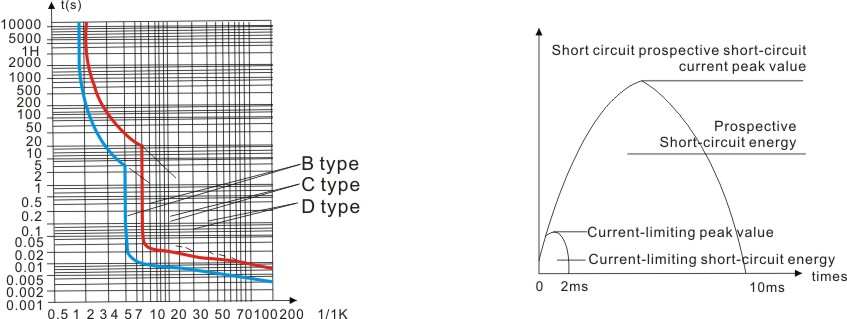

Characteristic Curve

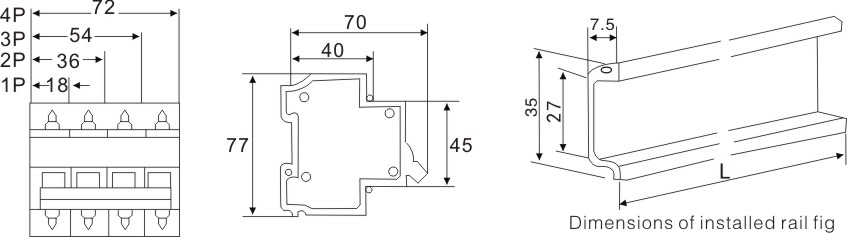

Outline and Mounting Dimension
